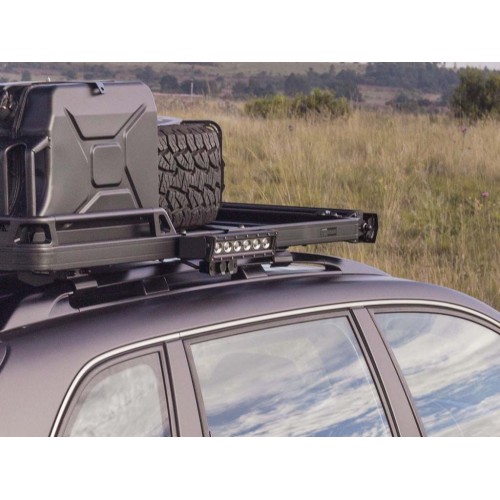

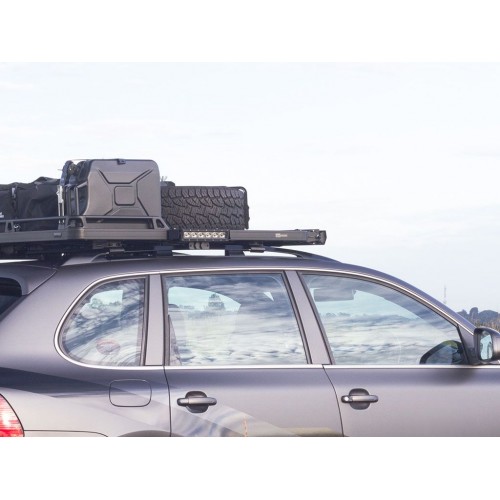

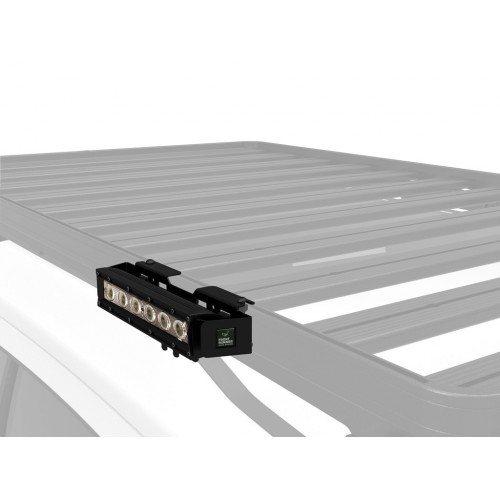

2400 LUMEN LED flood light for illumination around vehicle and campsite. Comes standard with Front Runner air dam/rock guard mounting bracket for fitting to the front, side or rear of the Front Runner Slimline II Roof Rack.
Comes standard with a Front Runner air dam/rock guard bracket for fitting to the front, side or rear of the Front Runner Slimline II Roof Rack.
No permanent wiring required. Just run power cord from vehicle 12v accessory outlet to one of the 2 receptacles in bracket. The additional receptacle can be used to simultaneously power the light and other 12v accessories.
Die cast aluminum housing is waterproof, dustproof and rattle proof. Built for Off-Road performance in harsh outdoor conditions.
Expected LED life of 30,000 hours.

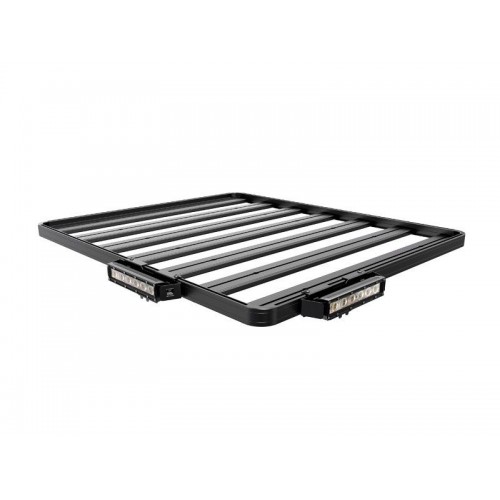

Comes standard with powder coated stainless steel Slimline II air dam and rock guard Roof Rack mounting brackets. (Optional original Slimline roof rack brackets are available (RRAC053).
120 degree wide flood beam pattern for close but wide range illumination immediately surrounding the vehicle.
1 x LED Light and Bracket
Black powder coated Steel
Black powder coated Aluminum
330mm (13") L x 97.5mm (3.8") W x 98mm (3.9") H
ECOM076 is required to provide power to the light.

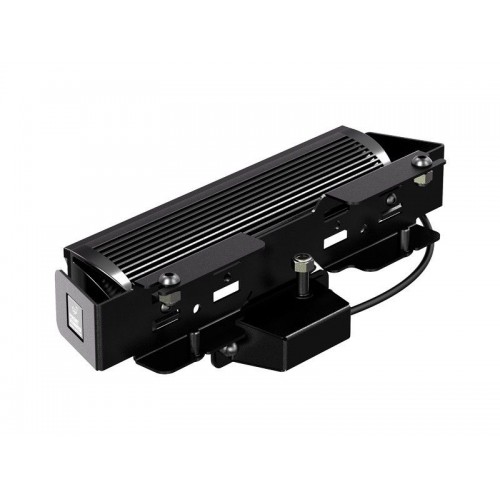

The LED light bracket has 2 Hella connection points.
One Hella connection point is used to provide power to the light and the other can be used for other accessories requiring 12V power.
The 2nd accessory point only has power when the light has power.
LED Light Specifications:
10" /240mm Single Row LED Lightbar
Input Voltage: 9-32 Volts DC
Power Consumption: 30 Watts
Amp Draw: 2.4 Amps @ 12 Volts
6 High Intensity CREE LEDs
Lumen Output: Approx. 2400
Beam Pattern: Flood
Beam Angle: 120 Degree Flood
Housing Material: Aluminum
Lens Material: Polycarbonate
Mounting Bracket: Black powder coated Stainless Steel
Dust Proof, Waterproof
