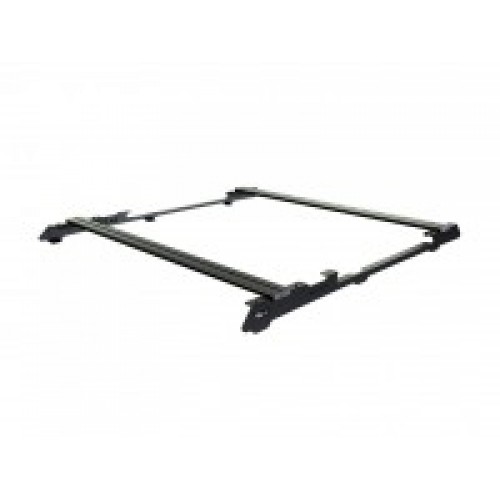

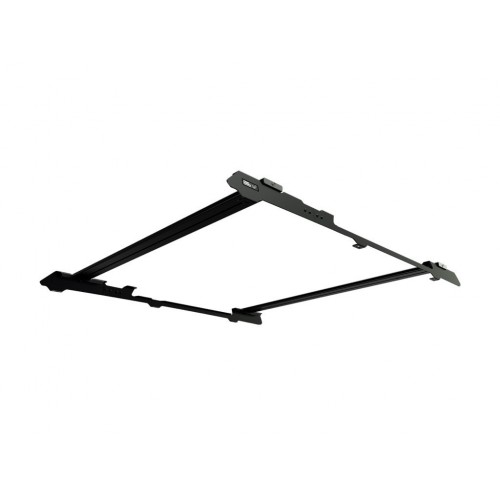

A set of Foot Rail Load Bars used to transport gear on the roof of your vehicle when there’s no need for a full Front Runner Roof Rack. This low profile, smaller footprint solution includes 2 Land Rover Discovery 1/2 Rack 72.5mm foot rails, 2 1165mm Load Bars, 4 Foot Rail to Load Bar Adapters and fitting instructions - all the components necessary to mount the Front Runner Load Bars to the vehicle.
You may not have the need for a full roof rack and find that you can get by using a set of Front Runner load bars.
Can be used to mount a Front Runner Roof Top Tent or other accessories where a low profile and smaller footprint is preferred.

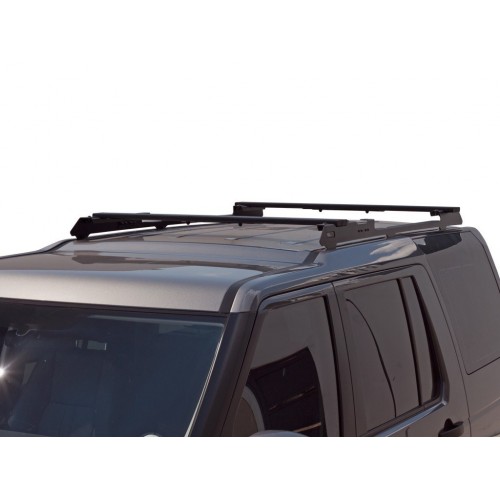

The Load Bars attach to the vehicle specific Foot Rails which in turn bolt to the vehicle’s roof using existing mounting points.
Uses the same strong, corrosion free aluminum slats found in Front Runner Slimline II Racks.
The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.
The Load Bars and vehicle specific Foot Rails can be used in the future as components to build a complete Front Runner Roof Rack.
Made from stainless steel and a durable, weather resistant black powder-coated aluminum.
Foot Rails allow for a maximum of two load bars.
Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.
1 x BOXL001 - Load Bar Box - Telescopic Lid (Printed) - by P & A Agencies Cape Town
1 x BOXL002 - Load Bar Box - Telescopic Base - by P & A Agencies Cape Town
1 x FALD004 - Land Rover Discovery LR3 & LR4 1/2 Rack Foot Rails - by Front Runner
1 x LBSK013 - Load Bar Pair 1165mm(W) - by Front Runner
1 x RRAC083 - Foot Rail to Load Bar Adapter - by Front Runner
Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel
Approximate Installed Weight 13kg (29lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
Width 110mm (4")
Length 1565mm (62")
Height 255mm (10")
Weight 15.3kg (33.5lbs)
