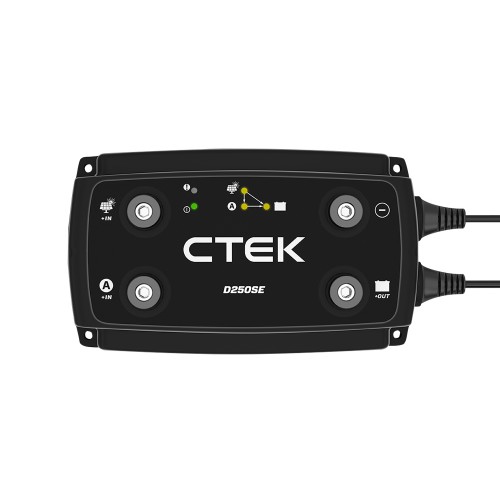

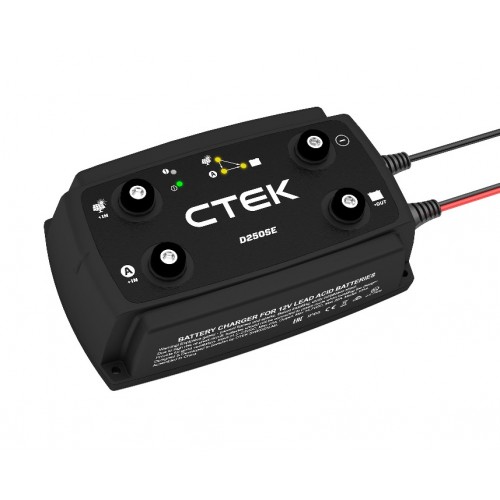

CTEK D250SE Dual DC-DC Battery Charger 40-315

Brand: CTEK
Product Code: CTED250SE
Availability: In Stock

Price: S$590.00
Ex Tax: S$590.00

Qty: - OR - Add to Wish List
Add to Compare

Using award-winning Swedish technology, the CTEK D250SE is a fully automatic, 5-stage DC-DC (battery-to-battery) charger and MPPT solar charge controller in a single, compact unit and is the successor to the hugely popular D250SA model. It enables you to charge a second lead-acid or lithium battery on the move, ensuring it's ready to power your 12V systems when you reach your destination. It has separate inputs for alternator and solar, allowing your battery to be charged from either of these power sources or a combination of both, prioitising the solar input to ensure maximum efficiency. 5-stage, temperature-compensated charging with selectable charging profiles ensures that your battery is maintained in the best condition possible and its service life maximised.

The D250SE can work with either conventional or 'smart' (Euro 5 / 6) ECU-controlled alternators and can provide up to 20A of current to charge the second battery. When the alternator is not running, the charger isolates the starter battery from the second battery (without the need for separate diodes or VSRs) to ensure that one cannot be discharged from the other. The solar input enables a second battery to be charged at up to 20A via a built-in controller that uses the latest MPPT technology to maximise the solar energy harvested from the panel. Once the second battery is fully charged, the D250SE will use the solar input to trickle charge the starter battery to ensure that it is maintained. The solar input can also be used to connect a wind generator instead of a solar panel.

The charger has selectable charge algorithms for different battery types (Wet, Sealed, Ca/Ca, AGM, EFB, GEL, LiFePO4, Li-Fe, Li-iron, LFP) with two settings for AGM (14.4V & 14.7V) and a temperature sensor to ensure that the charging profile is always optimised for the battery temperature.

Features

Fully automatic, 5-stage charging 'on-the-move'
Optimised charging for maximimum battery life
Dual inputs from alternator and solar (or wind) for combined charging
Works with Euro 5/6 Smart alternators and conventional types
Suits all lead-acid and lithium batteries
Adjustable charging profiles for different battery types
Can be used with battery capacities of 40 - 300Ah*
MPPT solar controller technology
Temperature-compensated charging
Splash and dust-proof (IP65)
2-year manufacturer's warranty

Further info

* For faster charging, this unit is best used with batteries up to around 110Ah capacity.

Cables and fuses not included. Please download installation instructions to determine correct cable size and fuses for your application.

Warning - when using with solar panels, the panel open circuit voltage must not exceed 23V DC or the CTEK unit may be damaged and the warranty voided. Do not use with panels connected in series. If using multiple panels, connect in parallel and ensure open circuit voltage is less than 23V DC.
